Clean Room Ovens for operation within an ISO 14644-1 environment

Clean room ovens are specially designed for operation in ISO 14644-1 environments. Carbolite Gero clean room ovens feature particle free silicone rubber door seals, fully sealed insulation as well as a fully enclosed brushless fan motor to prevent the shedding of particulate contamination. The stainless-steel interior and gloss white epoxy exterior are easily cleaned.

Clean Room Ovens - Op maat ontworpen

In addition to the standard range of clean room ovens, many other Carbolite Gero products can be built to suit a clean room environment. Custom options may include integration of the clean room oven into a wall to enable samples to pass through from a grey area or more sophisticated modified atmosphere configurations. A few of many examples are listed below.

Feel free to contact us to discuss the requirements for your application!

Clean room classificaties

StandardsClassificatie
ISO 14644-15678
BS 5295E/FG/HJK
Federal standard 209E100100010000100000
Op maat ontworpen GPC Universele kamer oven om te passen in een clean room muur (Ref. no. 300904)
Op maat ontworpen GPC Universele kamer oven om te passen in een clean room muur (Ref. no. 300904)

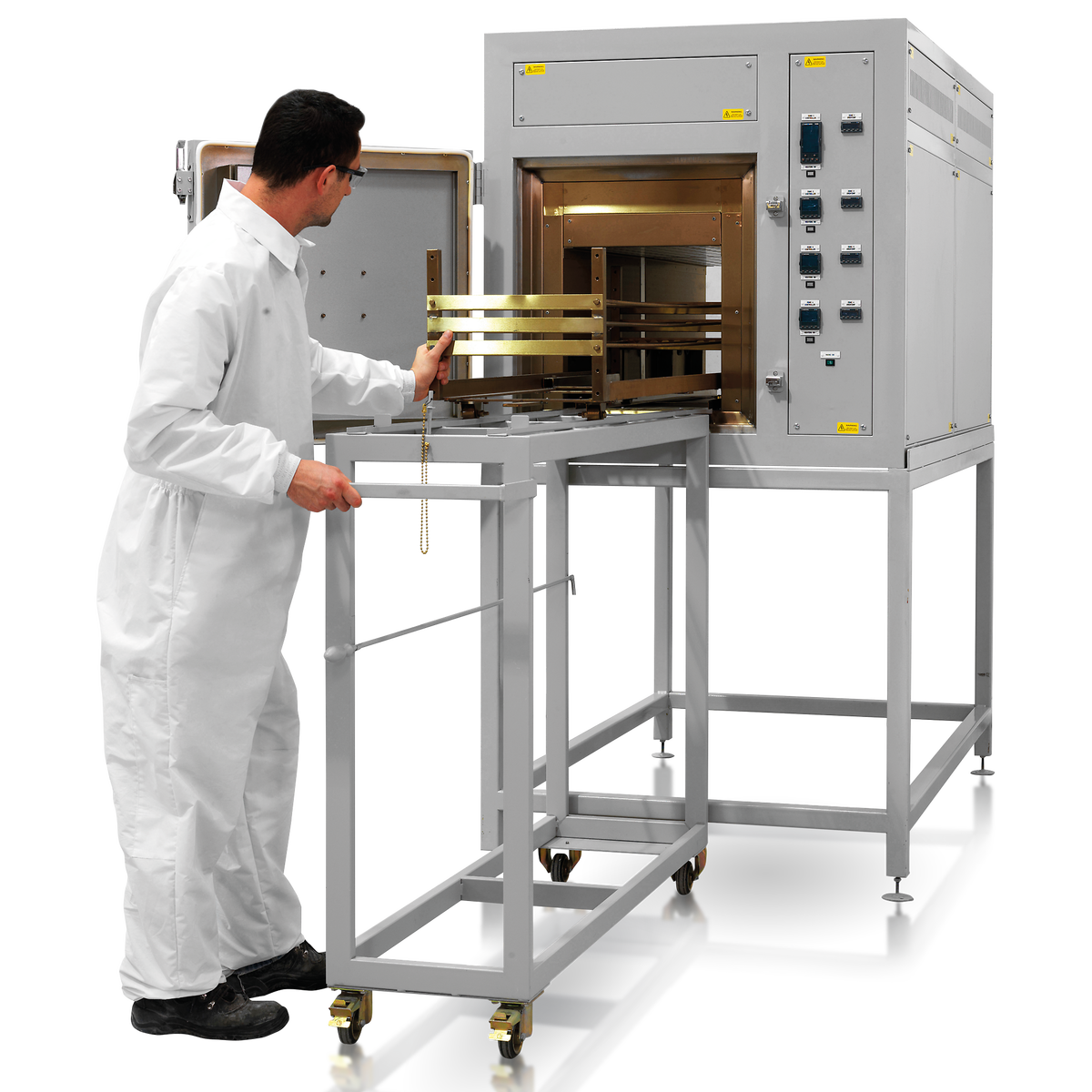

HTCR 4/232 hoge-temperatuur cleanroom oven met voor- en achterinvoer voor het doorvoeren van samples door cleanroom-wanden
HTCR 4/232 hoge-temperatuur cleanroom oven met voor- en achterinvoer voor het doorvoeren van samples door cleanroom-wanden

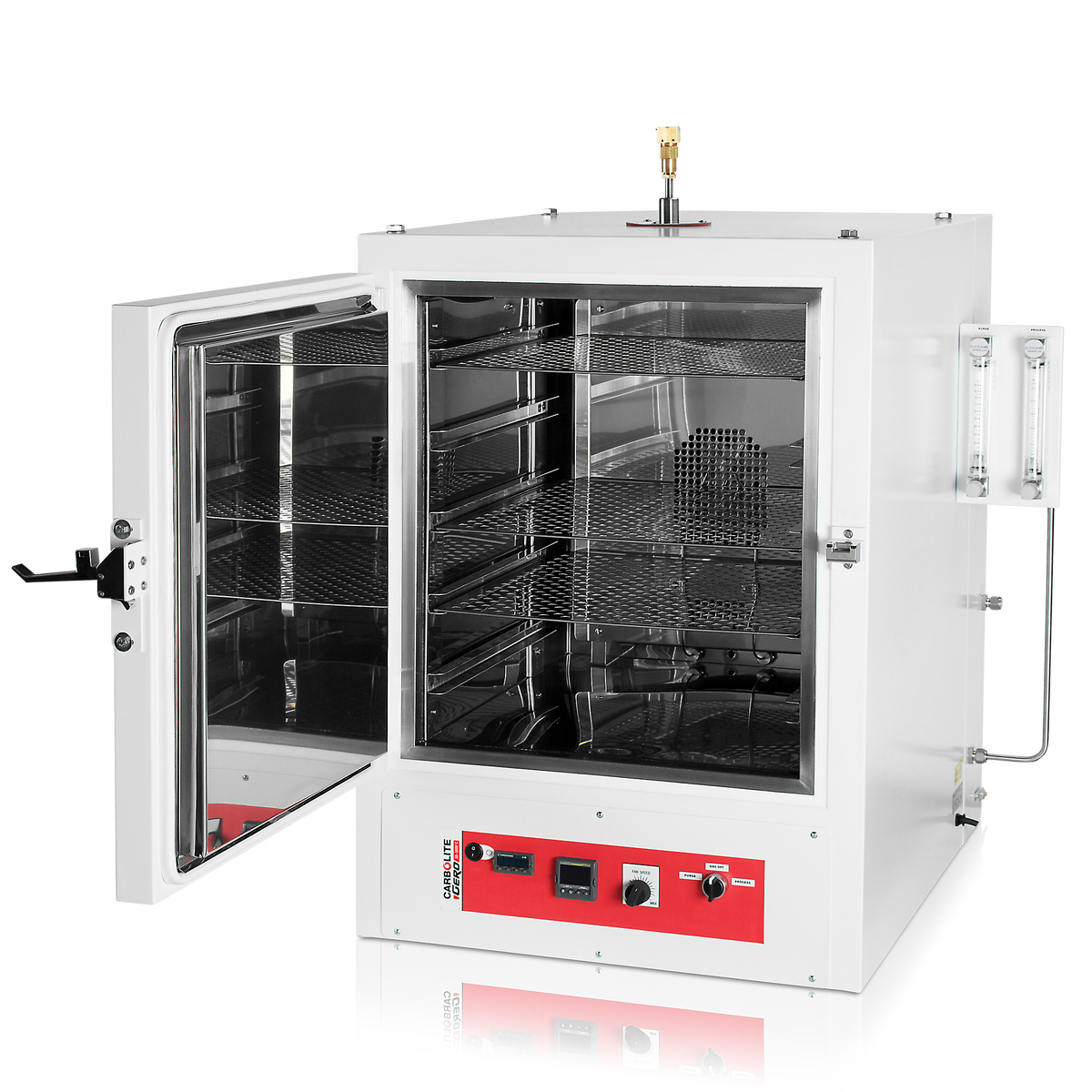

Taylor made CR130 cleanroom oven met gasregelaars voor gemodificeerde atmosferen
Taylor made CR130 cleanroom oven met gasregelaars voor gemodificeerde atmosferen

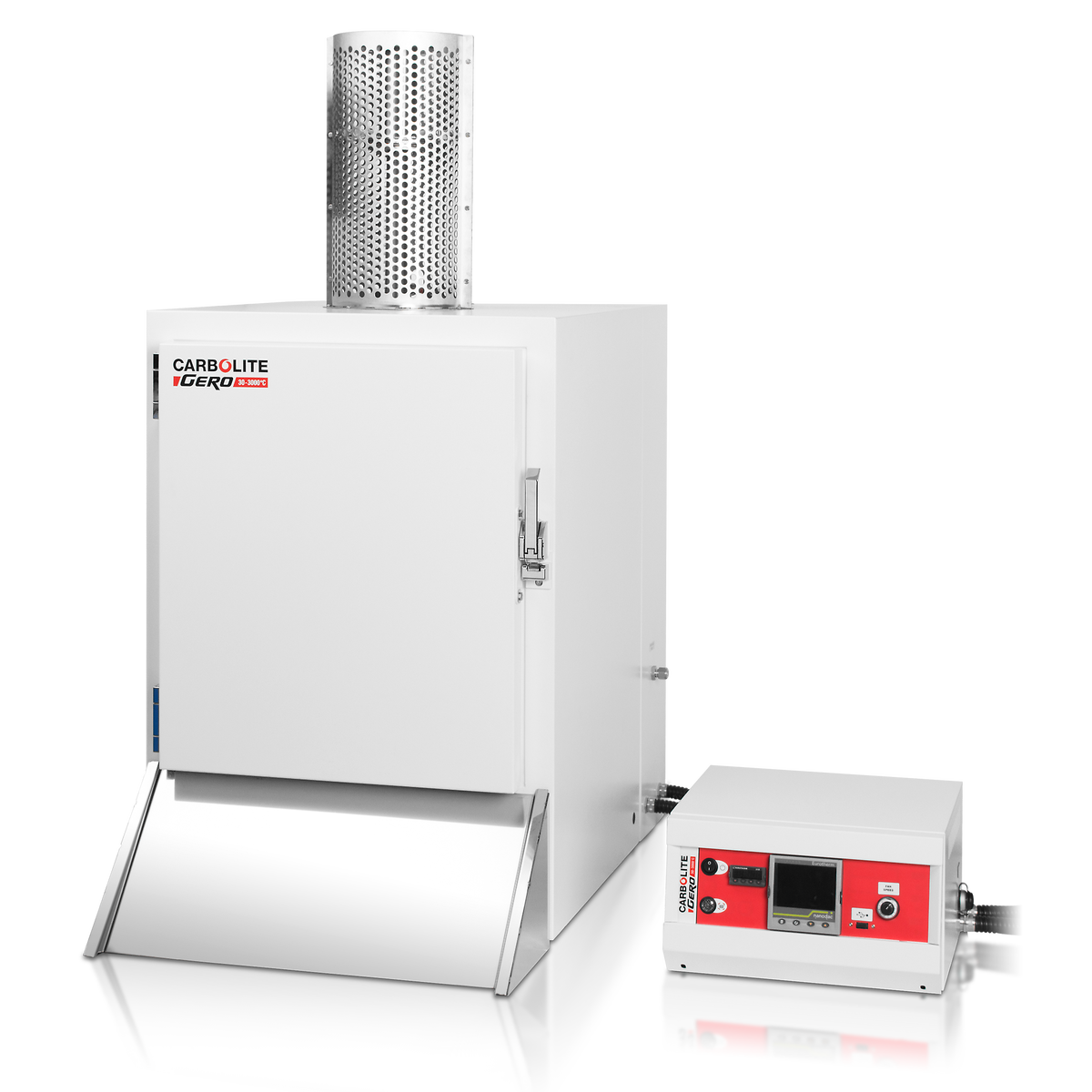

Cleanroom oven CR130 met zuurstofsensor voor toepassingen met hoge luchtvochtigheidsatmosfeer volgens klantspecificaties
Cleanroom oven CR130 met zuurstofsensor voor toepassingen met hoge luchtvochtigheidsatmosfeer volgens klantspecificaties

Clean Room Ovens - FAQ

What is a clean room oven?

Clean room ovens are specifically designed to work within a clean room environment. A clean room oven will include features to reduce particle shedding. For the highest clean room classes, it is often better to install the oven outside the clean room in the "grey area" for ease of maintenance. In this configuration the internal chamber is accessed through the clean room wall in the style of a ‘pass though’.

Can I use a standard laboratory oven instead of a dedicated clean room oven?

It may be possible to use some standard laboratory ovens in place of clean room ovens. The clean room class will dictate which oven type can be used. For ISO 14644-1 class 5 and class 6, dedicated clean room ovens are available. These include design features to prevent contamination caused by particle shedding, such as particle-free silicone rubber door seals, fully sealed insulation, and fully enclosed brushless fan motors.

Which ISO standards apply to a clean room oven?

ISO 14644-1 applies to clean room ovens. It specifies a range of classes of air cleanliness in terms of the concentration of particles in a given volume. Clean room ovens are designed to ensure they comply with this cleanliness standard and will specify which clean room class they comply with. Clean room ovens use design features to prevent contamination caused by the shedding of particulate matter. The stainless-steel interior and white epoxy painted exterior are easily cleaned.
